Customized Design Gold Shell Wide Lcd Ad Player 21.5 Inch Floor Touch Screen All-In-One Computer
Main Features
Ø Humanization sleek & smart design
Ø Metal wiredrawing craft on the frame
Ø Automobile metal black or silver painting
Ø Security back cover maintenance
Ø Screen split, i.e. video + logo + date + news + weather, subtitles display in one screen, etc
Ø Multi touch operation
Ø Worldwide certificate approval, such as RoHS, CE, and FCC
Specification:
| Size | 21.5inch |
| Panel | Original Samsung,LG, AUO A Level |
| Resolution | 1920*1080 |
| Brightness | 350nits |
| Viewing angle | H178/V178 |
| Aspect ratio | 16:9 |
| Contrast ratio | 5000:1 |
| Power supply | AC110-220V-50/60Hz |
| Photo formats | JPEG ,BMP ,GIF ,PNG |
| Audio formats | MP3,WAV,WMA |
| Video formats | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, |
| Touch | 10-point capacitive touch |
| Working Temp. | 0°——50° |
| Storage Temp. | -20°——60° |
| OS | Windows 7 |
| CPU | I3 |
| Memory | 4G |
| HDD | 500G |
| Interface | HD.MI out*1,USB *4 ,LAN *1, VGA*1 |

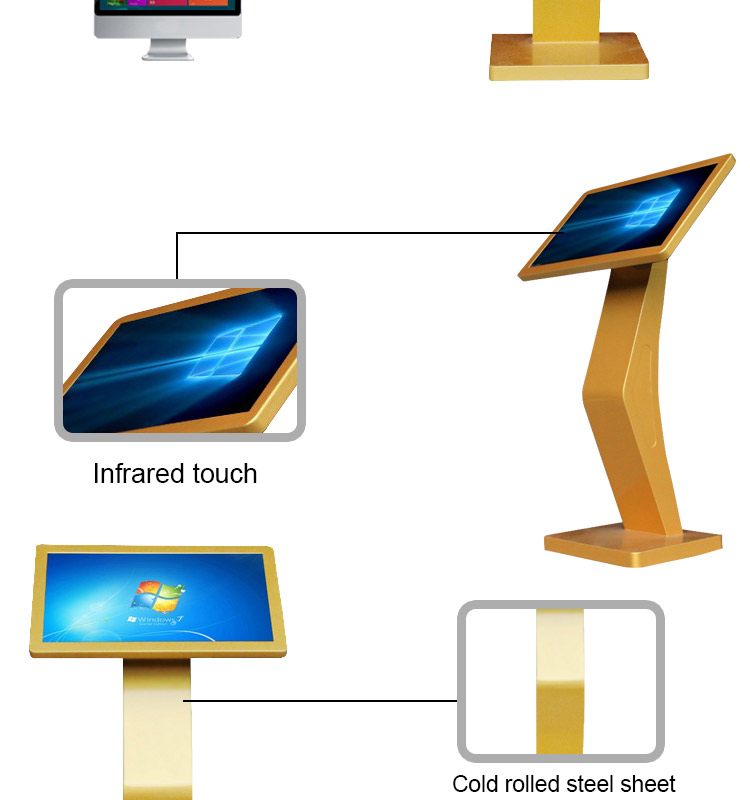

Infrared touch screen (there is gap between kiosk frame and TFT LED monitor)
| Items | Touch Screen Specifications |
| Touch type | Infrared sensor |
| Typical feature | Dustproof, vandal proof, anti-sunlight |
| Touch points | Multi 6 points |
| Accuracy | ±2mm |
| Light transmittance | Over 92% |
| Surface hardness | 7H |
| Output resolution | 4096X4096 |
| Respond time | Less than 8ms |
| Life span | Over 60,000,000 single point touch |
Ø PC configurations (it can be changed per the demand of clients)
| Items | PC Configurations |
| CPU | Intel I3-3110 |
| Mother board | Intel HM65 |
| Memory | DDR3 4GB |
| Hard disk | SATA 500GB |
| Graphic card | Integrated HD graphic card |
| Audio card | Integrated Realtek ALC889 8 channels |
| Network card | 1000M Realtek RTL8111E |
| Speaker | Sony origin 2X10w loud speaker |
| Interfaces | USB |
| Operating System | Windows 8 (English trial version) |
Ø Kiosk
| Items | Kiosk Specifications |
| Material | 2-3mm metal plate |
| Metal cut | Metal is cut by Laser Machine without burr |
| Surface finish | Automobile paint (carbon black or silver white) |
| Voltage input | AC 110V – 240V |
| Power plug | America standard, Europe standard |
| Work temperature | 0°C to 40°C |
| Storage temperature | -20°C to 60°C |
| Humidity | 20%-80% |
Product Tags:
|
|
Customized 21.5 Inch All In One PC Touch Screen Gold Shell Wide Lcd Ad Player Images
|
