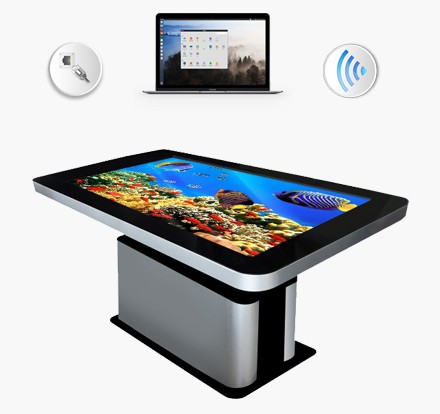

Description of Interactive Multi-Screen Touch Table
♦ The touch table is a multi-touch, interactive PC interface product. It is a human interface device that has the capability of allowing multiple people to interact simultaneously while identifying which person is touching where. The touch table is used to facilitate face-to-face collaboration, brainstorming, and decision-making, and so on.
♦ The touch table is a technological innovation that is finally seeing its day and that could very well change the way we think about organizing spaces – at home, in offices, and in retail.
Features of Interactive Multi-Screen Touch Table
♦ A+ LCD panel
♦ FHD 1920×1080 with LED backlight
♦ 7*24 working uninterrupted
♦ Multi-language
♦ Touch: 6-32 points IR touch or others
♦ Solid cold rolled aluminum-alloy frame
♦ AG 5mm tempered glass
♦ Locks and Keys for SECURITY
♦ Optional OS: Windows/Android WIFI / 3G / 4G
♦ Wall-mounted / Half-standing / Floor-standing
Displays of Interactive Multi-Screen Touch Table
 |
 | Operating System ANDROID/WINDOWS dual system Embedded operating system |
| All-in-One Solutions The performance of professional dynamic signage – no AV expertise needed! Cleverly designed with everything to get (and keep) you up and running – commercial-grade media player, content management software, versatile connectivity, stunning resolution, and more. |  |
 | Remote Upgrade System provided remote solution enclosed with product testing program is used to detect the performance and remote upgrade to hardware and software via internet. |
Specifications of Interactive Multi-Screen Touch Table
| Product Specifications |
| Panel Size | 43” | 49” | 55” |
| Resolution | 1920 x 1080 1080P | 1920 x 1080 1080P | 1920 x 1080 1080P |
| Visual angle L/R | 178°/178° | 178°/178° | 178°/178° |
| Viewing Area | 930.24(H)x523.26(V)mm | 1073.78(H)×604(V)mm | 1073.78(H)×604(V)mm |
| Brightness | 400 cd/m2 | 400 cd/m2 | 400 cd/m2 |
| Contrast ratio | 4000:1 | 4000:1 | 4000:1 |
| Color | 16.7M | 16.7M | 16.7M |
| Power | AC 100V-240V, 50/60 Hz | AC 100V-240V, 50/60 Hz | AC 100V-240V, 50/60 Hz |
| Power Consumption | 175W | 175W | 175W |
| System of signal | PAL/NTSC Auto Switch | PAL/NTSC Auto Switch | PAL/NTSC Auto Switch |
| Operation System |
| Operating System | Windows 7/8/10 | Android4.4(up to 5.1) |
| Main board | MSI B751A-E33 | Rockchip RK3288 |
| RAM | 4GB | 2GB |
| Momery/ROM | WD500GB, 5400 Revolution | 8GB eMMC, TF/USB extended memory |
| CPU | Intel core2 i3 /i5 /i7 | Quad Core 1.8GHz |
| Graphic | Intel HD Graphics 2500 | Quad Core ARM Mail-764 |
| Signal interface | HDMIx1 VGAx1 DVIx1 USBx4 AVx3 | HDMIx1 VGAx1 USBx2 |
| Internet interface | RJ45x1 Ethernetx1,10/100M, Wifi ×1,WIFI(802.11bgn) 3G/4G Slot |
| IR Touch Screen |
| Touch screen | Multi-touch (6-32) touch Point Optional |
| Touch accuracy | Touch area over 90% ±2mm |
| Interpolation resolution | 32767 x 32767 |
| Response Time | <20ms |
| Physical Hardness | Moh’s scale 7 |
| Smallest touch object | 5mm |
| Input mode | Finger, Touch pen or light proof objects |
