21.5-Inch Advanced Visual Unit for Factory Automation, Educational Applications, Control Rooms, and Public Service Points

Name: 215Inch Advanced Visual Unit for Factory Automation Educational Applications Control Rooms and Public Service Points
Brand: ZXTLCD
Price: 1 USD

Buy cheap 21.5-Inch Advanced Visual Unit for Factory Automation, Educational Applications, Control Rooms, and Public Service Points product

Brand Name : ZXTLCD

Model Number : ZXTLCD-E215BCT

Certification : CE/Rohs/FCC

Place of Origin : Guangdong, China

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 2000 pcs per month

Delivery Time : 3-5 working days

Packaging Details : wooden case, carton, flight cases are optional

Screen Size : 21.5 inch

Aspect Ratio : 16:9

Brightness : 250 cd/m²

Install Type : Embedded, open-frame, wall-mounted, floor-standing

Suitable Environment : Outdoor; Indoor

Applications : Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an

Contact Now

21.5-Inch Advanced Visual Unit for Factory Automation, Educational Applications, Control Rooms, and Public Service Points

LCD Panel Parameters	Screen Size	21.5 Inch
	Display Area	476.5 mm (Height) X 268 mm (Width)
	Aspect Ratio	16 : 9
	LCD Type	TFT-LCD Monitor
	Maximum Resolution	1920 X 1080
	Display Color	16.7m
	Brightness	250cd/m²
	Contrast Ratio	3000 : 1
	Viewing Angle (Up/Down/Left/Right)	89/89/89/89 (Type)(CR≥10)
	Response Time	6.5ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
PCAP Touchscreen Panel Parameters	Touch Pattern	Capacitive Touchscreen Capacitive Projected
	Touch Points	10 Points
	Cover Glass	Physical toughened Morse magnitude 7 explosion-proof
		Glass 3 mm. Optical mount to reduce parallax
	Glass Transmission	>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
	Response Speed	< 6ms
	Touch Accuracy	More than 90% of the touch area ±2 mm
	Touch Method	Inch Stylus
	Output Format	Coordinate Output
	Click Time	Unlimited
	Smallest Touch Size	5 mm
	Long-lasting Durability	Yes, Available
	Touch Interface	USB
	Operating Temperature and Humidity	Below 10℃ ~ +50℃, ≤ 85%RH
	Storage Temperature and Humidity	Less than 20℃ ~ +60℃, ≤ 90%RH
Audio Parameters (External Speaker Option)	Audio system	Stereo
	Speaker size	≈ 99 x 45 x 20 mm
	Impedance	8 Ohm
	Power	2 x 5 Watt
	Loudness	> 80 Decibel
	Interface	4-pin connector
Onboard Interface	HDMI Input	1
	VGA Input	1
	DVI Input	1
	USB Type B or any desired USB Type	1
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 45 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
Accessories	Power Cord Length	1.5m
	HDMI Cable Length	2m
	USB-A to USB-B Cable Length	1.5m
	Stereo Speaker Size with Connector	994520mm
	Stereo Speaker Length	1.5m

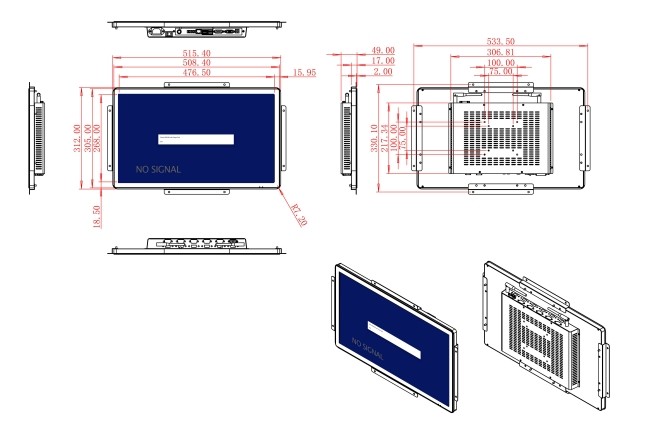

Package Size	Device Dimensions	515.4 X 312 X 49 mm.
	Net Weight	7 Kilogram
	Package Size	60 X 40 X 15Centimeter
	Gross Package Weight per Unit	7.5 Kilogram

21.5-Inch Advanced Visual Unit for Factory Automation, Educational Applications, Control Rooms, and Public Service Points

21.5-Inch Advanced Visual Unit for Factory Automation, Educational Applications, Control Rooms, and Public Service Points Images
